Power Transfer Unit (PTU)
WARNING: This page is about a different variant/trim than selected.

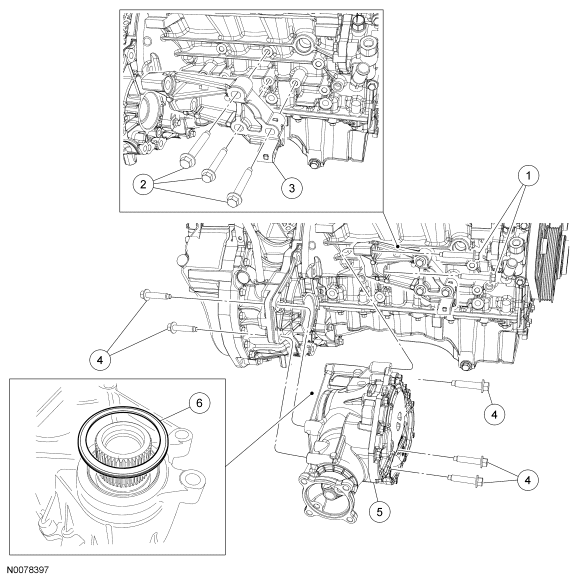

| Item | Part Number | Description |
|---|---|---|
| 1 | W500724 | Power Transfer Unit (PTU)-to-support bracket bolts (2 required) |
| 2 | W500724 | PTU support bracket-to-engine block bolts (3 required) |
| 3 | 7A444 | PTU support bracket |
| 4 | W500741 | PTU-to-transaxle bolts (3 required) |
| 5 | 7251 | PTU |
| 6 | 7087 | Compression seal |
- With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING article.
- Remove the driveshaft. For additional information, refer to DRIVESHAFT article.
- Remove the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM article.
- Remove the 2 Power Transfer Unit (PTU)-to-support bracket bolts, then remove the 3 PTU support bracket bolts and the PTU support bracket.
- Remove the 5 PTU-to-transaxle bolts.
- Separate the PTU from the transaxle. Remove the PTU from the vehicle.
- Using a suitable tool, remove the compression seal and discard.
NOTE:
A new compression seal must be installed whenever the PTU is removed from the vehicle.
