Power Transfer Unit (PTU)
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
|---|---|
| Motorcraft SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL (US); CXY-75W140-1L (Canada) |
WSL-M2C192-A |

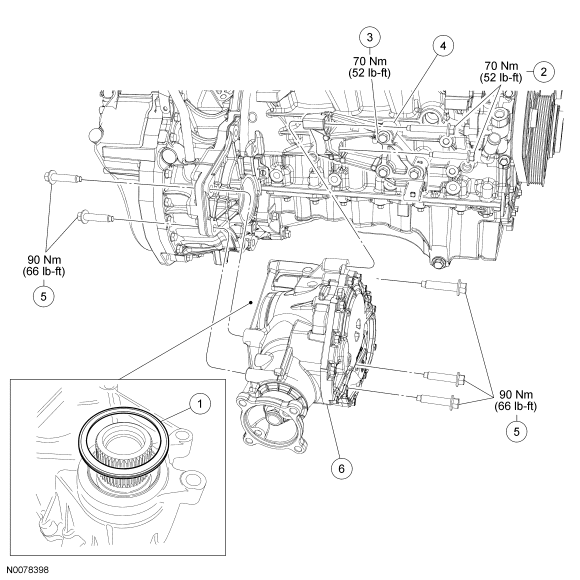

| Item | Part Number | Description |
|---|---|---|
| 1 | 7087 | Compression seal |
| 2 | W500724 | Power Transfer Unit (PTU)-to-support bracket bolts (2 required) |
| 3 | W500724 | PTU support bracket-to-engine block bolt (3 required) |
| 4 | 7A444 | PTU support bracket |
| 5 | W500741 | PTU-to-transaxle bolts (5 required) |
| 6 | 7251 | PTU |
- Using a suitable tool, install the new compression seal.
- Position the PTU to the transaxle. Install the 5 PTU-to-transaxle bolts.
- Tighten to 90 Nm (66 lb-ft).
- Position the PTU support bracket into place and install the 5 PTU support bracket bolts.
- Tighten the bolts to the transaxle to 70 Nm (52 lb-ft).
- Tighten the bolts to the engine to 70 Nm (52 lb-ft).
- Install the driveshaft. For additional information, refer to DRIVESHAFT article.
- Install the RH catalytic converter. For additional information, refer to EXHAUST SYSTEM article.
- Top off all fluids as necessary.
NOTE:
A new compression seal must be installed whenever the Power Transfer Unit (PTU) is removed from the vehicle.
NOTE:
A new PTU intermediate shaft seal and deflector must be installed whenever the intermediate shaft or PTU is removed from the vehicle.
