Positive Crankcase Ventilation (PCV) Valve: Notes

WARNING: This page is about a different variant/trim than selected.

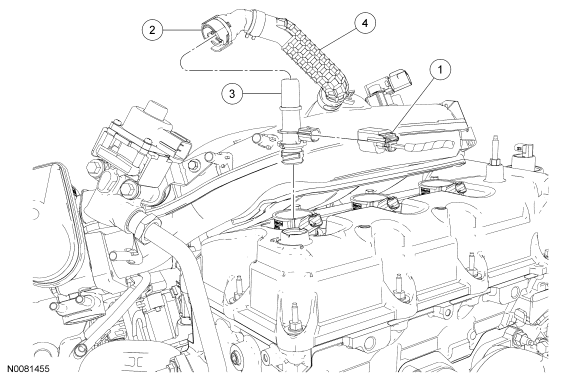

Fig 1: Exploded View Of Positive Crankcase Ventilation (PCV) Valve
GF0041371Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCV valve electrical connector
2 - Crankcase ventilation tube quick connect coupling (part of 6K817)
3 6A666 PCV valve
4 6K817 Crankcase ventilation tube
