Exhaust Gas Recirculation (EGR) System Components - Exploded View
WARNING: This page is about a different variant/trim than selected.
NOTE:
Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

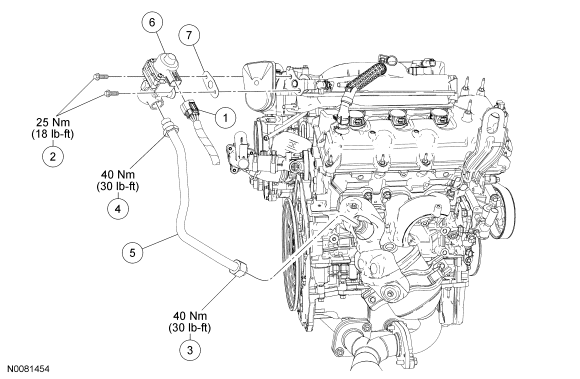

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | EGR valve electrical connector |
| 2 | W500229S | EGR valve bolts (2 required) |
| 3 | - | Exhaust manifold-to-EGR valve tube fitting (part of 9D477) |
| 4 | - | Exhaust manifold-to-EGR valve tube fitting (part of 9D477) |
| 5 | 9D477 | Exhaust manifold-to-EGR valve tube |
| 6 | 9D475 | EGR valve |
| 7 | 9D476 | EGR valve gasket |
- For additional information, refer to the procedures.
