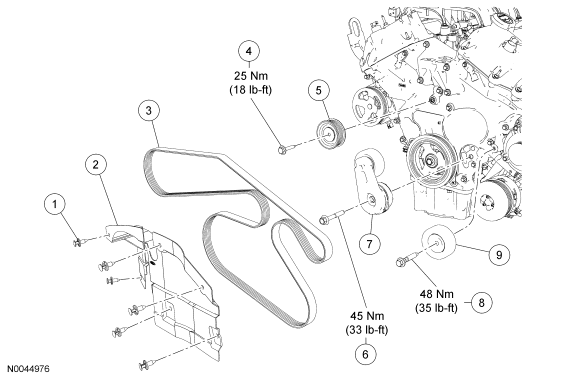

Front End Accessory Drive (FEAD) - Exploded View
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | N807389 | Pin-type retainer (6 required) |
| 2 | 010204 | RH splash shield |
| 3 | 8620 | Accessory drive belt |
| 4 | - | Accessory drive belt idler pulley bolt (part of 6C348) |
| 5 | 6C348 | Accessory drive belt idler pulley (grooved) |
| 6 | - | Accessory drive belt tensioner bolt (part of 6B209) |
| 7 | 6B209 | Accessory drive belt tensioner |
| 8 | - | Accessory drive belt idler pulley bolt (part of 19A216) |
| 9 | 19A216 | Accessory drive belt idler pulley (non-grooved) |
- For additional information, refer to the procedures.
