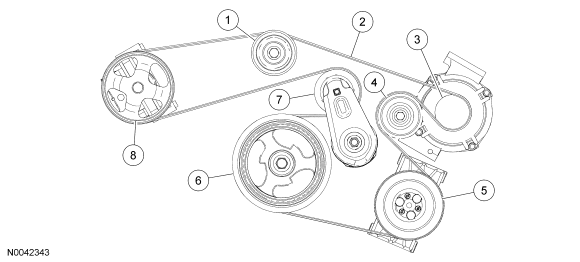

Accessory Drive Belt Routing
WARNING: This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6C348 |
Accessory drive belt idler pulley (grooved) |
| 2 |
8620 |
Accessory drive belt |
| 3 |
10344 |
Generator pulley |
| 4 |
19A216 |
Accessory drive belt idler pulley (non-grooved) |
| 5 |
19D784 |
A/C clutch pulley |
| 6 |
6316 |
Crankshaft pulley |
| 7 |
6B209 |
Accessory drive belt tensioner |
| 8 |
3A696 |
Power steering pump pulley |
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
6A359 |
Camshaft drive pulley |
| 2 |
8K543 |
Coolant pump drive belt |
| 3 |
8A528 |
Coolant pump pulley |
