Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal
WARNING: This page is about a different car, the 2008 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.

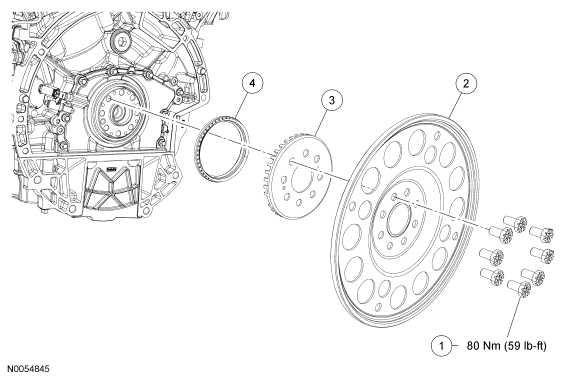

Fig 1: Exploded View Of Flexplate & Crankshaft Rear Seal With Torque Specification
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W701559
Flexplate bolt (8 required)
2
6375
Flexplate
3
12A227
Crankshaft sensor ring
4
6701
Crankshaft rear seal
For additional information, refer to the procedures.
