Exhaust Manifold - RH: Notes
WARNING: This page is about a different car, the 2008 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |

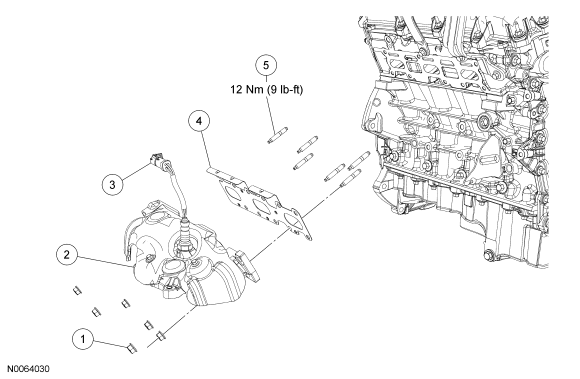

| Item | Part Number | Description |
|---|---|---|
| 1 | W701706 | RH exhaust manifold nut (6 required) |
| 2 | 9430 | RH exhaust manifold |
| 3 | 14A464 | RH heated oxygen sensor (H02S) electrical connector |
| 4 | 9448 | RH exhaust manifold gasket |
| 5 | W701732 | RH exhaust manifold stud (6 required) |
