Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2008 Lincoln MKZ. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31-A |
- |

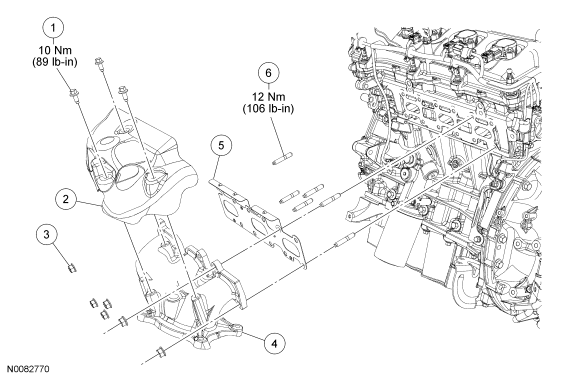

| Item | Part Number | Description |
|---|---|---|
| 1 | W713299 | LH exhaust manifold heat shield bolt (3 required) |
| 2 | 9Y427 | LH exhaust manifold heat shield |
| 3 | W701706 | LH exhaust manifold nut (6 required) |
| 4 | 9431 | LH exhaust manifold |
| 5 | 9448 | LH exhaust manifold gasket |
| 6 | W701732 | LH exhaust manifold stud (6 required) |
