Subframe - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 204-592 | 204-592/1 | |
| Ball Joint Separator | 204-592 | |
| Powertrain Lift Table | 014-00765 |

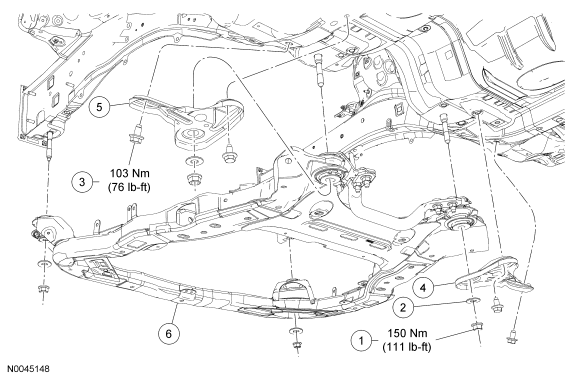

| Item | Part Number | Description |
|---|---|---|
| 1 | W520416 | Front subframe nut (4 required) |
| 2 | 5A552 | Front subframe washer (4 required) |
| 3 | 3C496 | Front subframe support bracket bolt (4 required) |
| 4 | 3B154 | RH front subframe support bracket |
| 5 | 3B155 | LH front subframe support bracket |
| 6 | 5C145 | Front subframe |
