Transmission Fluid Cooler Tubes - FNR5: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| FNR5 Automatic Transmission Fluid XT-9-QMM5 |
Mazda MES MN 117C (ATF-M V) |

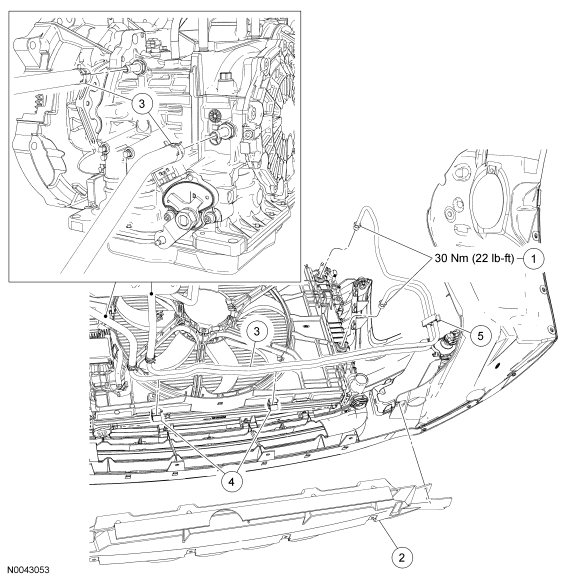

| Item | Part Number | Description |
|---|---|---|
| 1 | M52923 | Transmission fluid cooler tube radiator fittings |
| 2 | 8B407 | Radiator splash shield |
| 3 | 7H420 | Transmission fluid cooler tube assembly |
| 4 | 256844 | Transmission fluid cooler tube retaining clips |
| 5 | 256679 | Transmission fluid cooler tube retaining clip |
