Transmission Fluid Cooler Tubes - Aisin AW21: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Automatic Transmission Fluid XT-8-QAW (US); CXT-8-LAW12 (Canada) |
WSS-M2C924-A |

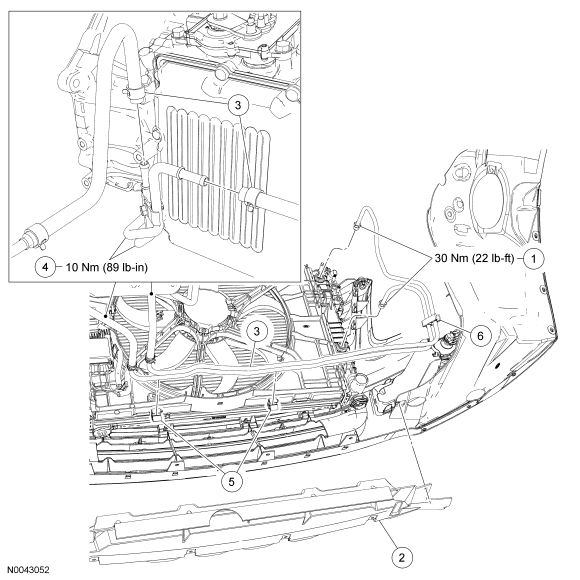

| Item | Part Number | Description |
|---|---|---|
| 1 | M52923 | Transmission fluid cooler tube radiator fittings |
| 2 | 8B407 | Radiator splash shield |
| 3 | 7H420 | Transmission fluid cooler tube assembly |
| 4 | 19710-A | Transmission fluid cooler tube fittings at the transaxle |
| 5 | 256844 | Transmission fluid cooler tube retaining clips |
| 6 | 256679 | Transmission fluid cooler tube retaining clip |
