Inertia Fuel Shutoff (IFS) Switch: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

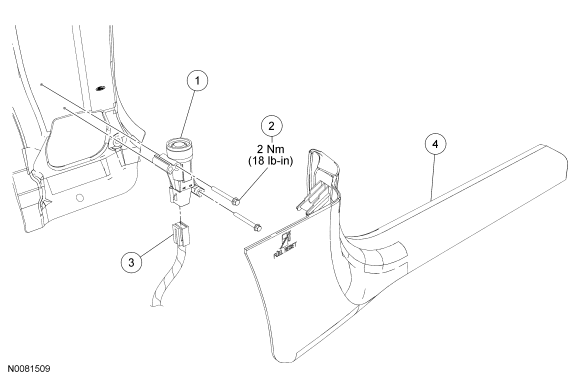

Fig 1: Exploded View Of Inertia Fuel Shutoff (IFS) Switch With Torque Specification
GF0041525Courtesy of FORD MOTOR CO.
Item Part Number Description
1 9341 Inertia Fuel Shutoff (IFS) switch
2 W504148 IFS bolt (2 required)
3 14489A IFS switch electrical connector
4 5413200 RH front door scuff plate
