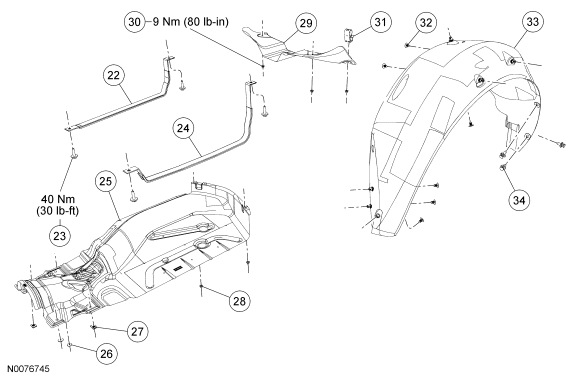

FWD Vehicles (View 2 of 2)
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 22 | 9092 | RH fuel tank strap |
| 23 | W505444 | Fuel tank strap bolt (4 required) |
| 24 | 9092 | LH fuel tank strap |
| 25 | 9A031 | Fuel tank heat shield |
| 26 | W700430 | Fuel tank heat shield nut (2 required) |
| 27 | 9B328 | Fuel tank heat shield clip (2 required) |
| 28 | W712232 | Fuel tank heat shield nut (2 required) |
| 29 | 5411268 | Fuel tank filler pipe heat shield |
| 30 | W707142 | Fuel tank filler pipe heat shield nut (3 required) |
| 31 | 529330 | Fuel tank filler pipe heat shield bracket |
| 32 | W701259 | Splash shield pin-type retainer (6 required) |
| 33 | 5428371 | LH splash shield |
| 34 | N807379 | Splash shield rivet (3 required) |
