All-Wheel Drive (AWD) Vehicles (View 1 of 2)
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

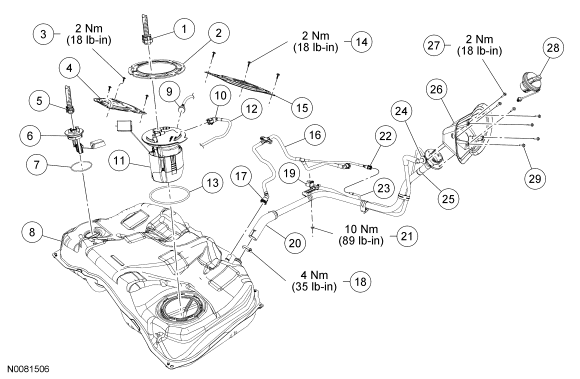

Fig 1: Exploded View Of Fuel Tank & Filler Pipe With Torque Specifications - All-Wheel Drive (AWD) Vehicles (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Fuel Pump (FP) module electrical connector |
| 2 | 9C385 | FP module lock ring |
| 3 | W705909 | Fuel level sensor access cover screw (3 required) |
| 4 | 9C355 | Fuel level sensor access cover |
| 5 | 14A464 | Fuel level sensor electrical connector |
| 6 | 9275 | Fuel level sensor |
| 7 | 9276 | Fuel level sensor O-ring seal |
| 8 | 9K007 | Fuel tank |
| 9 | - | Internal fuel tube-to-FP module quick connect coupling |
| 10 | - | Fuel tube-to-FP module quick connect coupling (part of 9J279) |
| 11 | 9H307 | FP module |
| 12 | 9J279 | Fuel tube |
| 13 | 9276 | FP module O-ring seal |
| 14 | W705909 | FP module access cover screw (3 required) |
| 15 | 9C355 | FP module access cover |
| 16 | 9A228 | Fuel vapor tube assembly |
| 17 | - | Fuel vapor tube assembly-to-fuel tank quick connect coupling (part of 9A228) |
| 18 | W525937 | Fuel tank filler pipe hose clamp |
| 19 | - | Fresh air hose (part of 9034) |
| 20 | - | Fuel tank filler pipe hose (part of 9034) |
| 21 | N806543 | Fuel tank filler pipe bracket nut |
| 22 | - | Fuel vapor tube assembly-to-recirculation tube quick connect coupling (part of 9A228) |
| 23 | - | Recirculation tube (part of 9034) |
| 24 | - | Fresh air hose fitting (part of 9034) |
| 25 | 9034 | Fuel tank filler pipe |
| 26 | 5440354 | Fuel tank filler pipe housing |
| 27 | N802826 | Fuel tank filler pipe retaining screw (3 required) |
| 28 | 9030 | Fuel tank filler cap |
| 29 | N802826 | Fuel tank filler pipe housing screw (4 required) |
