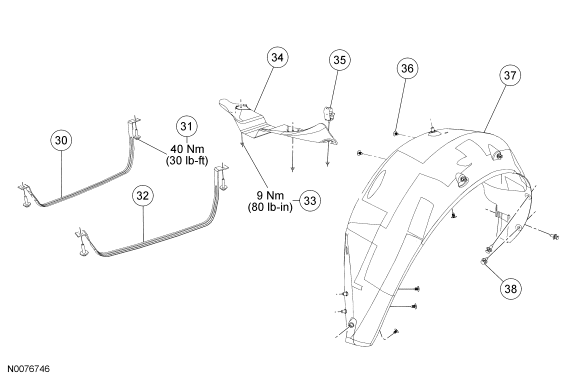

Fig 1: Exploded View Of Fuel Tank & Filler Pipe With Torque Specifications - AWD Vehicles (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
30	9092	RH fuel tank strap
31	W505444	Fuel tank strap bolt (4 required)
32	9092	LH fuel tank strap
33	W707142	Fuel tank filler pipe heat shield nut (3 required)
34	5411268	Fuel tank filler pipe heat shield
35	529330	Fuel tank filler pipe heat shield bracket
36	W701259	Splash shield pin-type retainer (6 required)
37	5428371	LH splash shield
38	N807379	Splash shield rivet (3 required)

For additional information, refer to the procedures.
