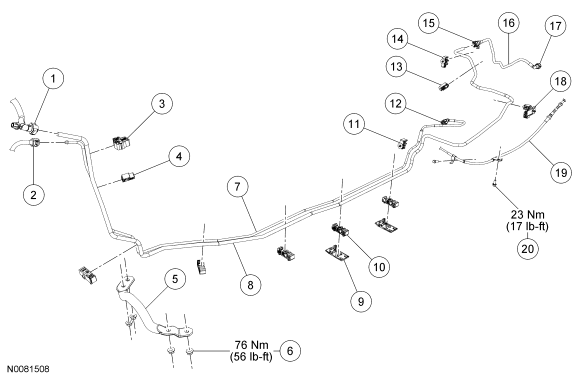

Fuel Lines - All Wheel Drive (AWD): Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Vapor jumper tube-to-vapor tube quick connect coupling (part of 9G279) |
| 2 | - | Fuel jumper tube-to-fuel tube quick connect coupling (part of 9J285) |
| 3 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 4 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 5 | 5884 | Lower crossover support brace |
| 6 | W580415 | Lower crossover support brace nut (4 required) |
| 7 | 9J279 | Fuel tube |
| 8 | 9J279 | Vapor tube |
| 9 | - | Fuel tube bundle retaining clip shield (part of 9J279) (2 required) |
| 10 | - | Fuel tube bundle retaining clip (part of 9J279) (5 required) |
| 11 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 12 | - | Fuel tube-to-Fuel Pump (FP) module quick connect coupling (part of 9J279) |
| 13 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 14 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 15 | - | Vapor jumper tube-to-vapor tube quick connect coupling (part of 9J279) |
| 16 | 9J279 | Vapor jumper tube |
| 17 | - | Vapor jumper tube-to-Evaporative Emission (EVAP) canister quick connect coupling (part of 9J279) |
| 18 | - | Fuel tube bundle retaining clip (part of 9J279) |
| 19 | 2A815 | LH rear parking brake cable assembly |
| 20 | W505263 | Rear parking brake cable assembly bolt |
