Selector Lever Bezel: Installation

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles equipped with a Transmission Control Switch (TCS)

  1. Route the TCS wiring harness through the selector lever knob bezel and the PRNDL bezel.
  2. All vehicles

    NOTE: Be sure that the override lever is inserted in the override lever guide or the shift interlock override button will not work correctly.
    NOTE: Selector lever removed for clarity.
  3. Install the PRNDL bezel, selector lever knob and knob bezel on the selector lever.
    • Position the override lever in the override lever guide.
    • Make sure that the 3 locking tabs are locked in place.

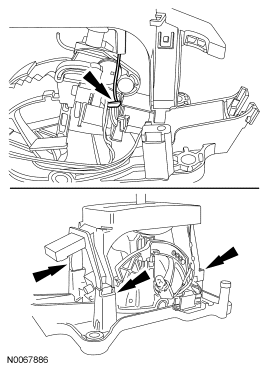

  4. Fig 1: Identifying PRNDL Bezel, Selector Lever Knob & Knob Bezel
    GF0029912Courtesy of FORD MOTOR CO.

    Vehicles equipped with a Transmission Control Switch (TCS)

  5. Connect the TCS electrical connector and install the wiring harness retainer on the selector lever housing.
  6. Fig 2: Locating Transmission Control (TC) Switch Electrical Connector
    GF0029910Courtesy of FORD MOTOR CO.

    Vehicles equipped with LED illumination

  7. Connect the LED electrical connector.
  8. Fig 3: Locating LED Electrical Connector
    GF0029909Courtesy of FORD MOTOR CO.

    Vehicles equipped with a light bulb

  9. Connect the light to the PRNDL bezel.
  10. Fig 4: Locating Light From PRNDL Bezel
    GF0029908Courtesy of FORD MOTOR CO.

    All vehicles

    NOTE: Do not overtighten the selector lever knob bolts or damage to the selector lever or knob may occur.
  11. Install the selector lever knob and 2 new bolts.
    • Tighten to 2 Nm (18 lb-in).
  12. Fig 5: Locating Bolts
    GF0029907Courtesy of FORD MOTOR CO.
  13. Slide the lower selector lever knob bezel up and snap it into place.
  14. Fig 6: Sliding Lower Shift Knob Bezel Up
    GF0029913Courtesy of FORD MOTOR CO.

    Fusion/Milan

  15. Connect the power outlet electrical connector.
  16. Fig 7: Locating Power Outlet Electrical Connector
    GF0029905Courtesy of FORD MOTOR CO.
  17. Install the power outlet trim panel in the center console.
  18. Fig 8: Locating Power Outlet Trim Panel
    GF0029904Courtesy of FORD MOTOR CO.

    All vehicles

  19. Install the upper console panel.
  20. Fig 9: Locating Upper Console Panel
    GF0029903Courtesy of FORD MOTOR CO.
  21. Install the PRNDL trim ring.
  22. Fig 10: Locating PRNDL Trim Ring
    GF0029902Courtesy of FORD MOTOR CO.
