WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

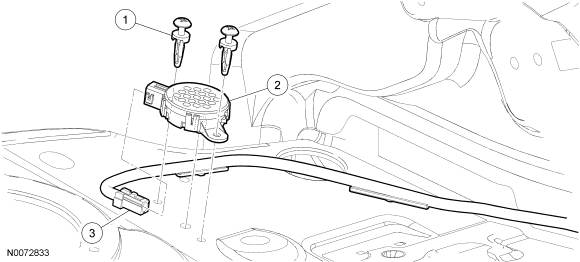

Fig 1: Exploded View Of Parking Aid Speaker
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
W713167
Parking aid speaker push pins (2 required)
2
15K864
Parking aid speaker
3
-
Parking aid speaker electrical connector (part of 14A005)
