Wiper and Washer System - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

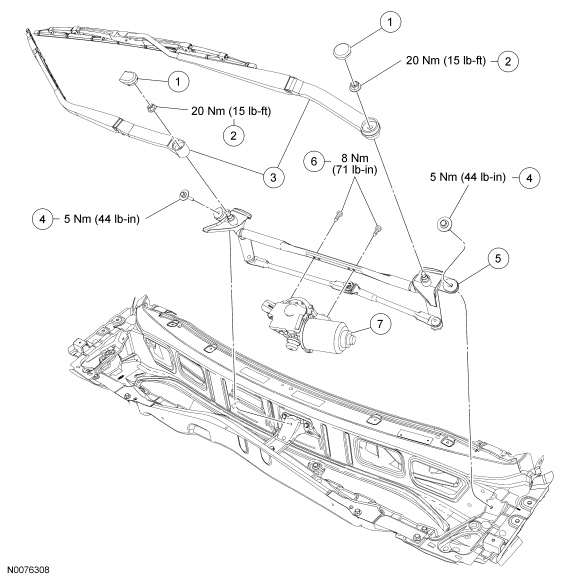

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17C526 |
Wiper pivot arm caps (2 required) |
| 2 |
17D592 |
Wiper pivot arm nuts (2 required) |
| 3 |
17C495 LH/ 17B589 RH |
Wiper pivot arm assembly |
| 4 |
W701121 |
Windshield wiper mounting arm and pivot shaft assembly bolts (2 required) |
| 5 |
- |
Windshield wiper mounting arm and pivot shaft assembly |
| 6 |
- |
Wiper motor-to-wiper mounting arm bolts (2 required) |
| 7 |
- |
Wiper motor assembly |

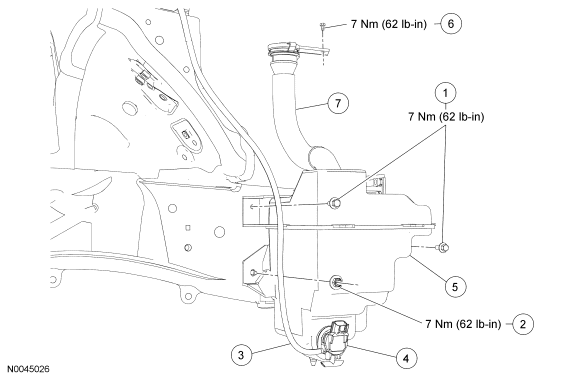

Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W505252 |
Windshield washer reservoir bolts (2 required) |
| 2 |
W702751 |
Windshield washer reservoir nut |
| 3 |
17A605 |
Windshield washer reservoir hose |
| 4 |
- |
Windshield washer pump |
| 5 |
17618 |
Windshield washer reservoir |
| 6 |
W500214 |
Windshield washer reservoir filler neck retaining bolt |
| 7 |
N623332 |
Windshield washer reservoir filler neck |
- For additional information, refer to the procedures.
