Turbine Shaft Speed (TSS) Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
Thread Sealant with PTFE
TA-24 |
WSK-M2G350-A2 |
Courtesy of FORD MOTOR CO.

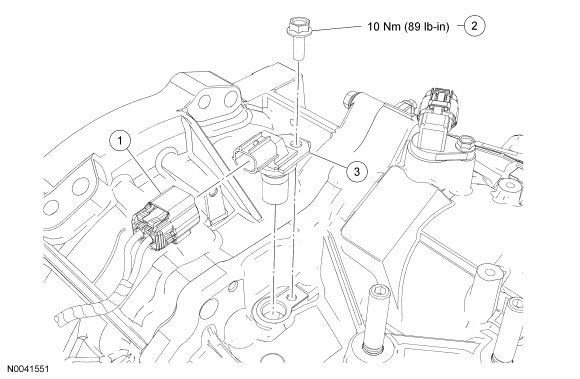

| Item |
Part Number |
Description |
| 1 |
14A464 |
Turbine Shaft Speed (TSS) sensor electrical connector |
| 2 |
S997840616 |
TSS sensor bolt |
| 3 |
7M101 |
TSS sensor |
