Transmission Range (TR) Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Alignment Tool, Transmission Range Sensor | 307-571 |

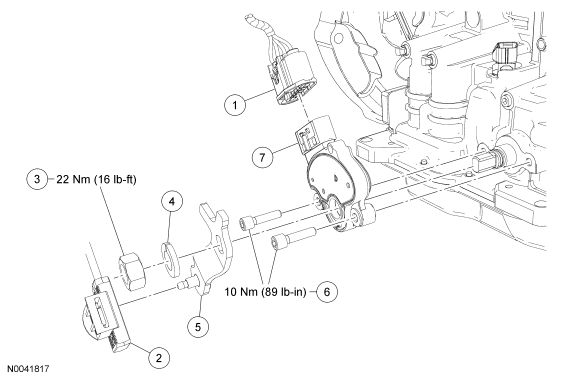

| Item | Part Number | Description |
|---|---|---|
| 1 | 14A464 | Transmission Range (TR) sensor electrical connector |
| 2 | 7E395 | Selector lever cable |
| 3 | S999211400 | Manual control lever nut |
| 4 | - | Lock washer |
| 5 | 7A256 | Manual control lever |
| 6 | W500015-S309 | TR sensor bolts (2 required) |
| 7 | 7F293 | TR sensor |
