Transmission Fluid Pan: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item |
Specification |
FNR5 Automatic Transmission Fluid
XT-9-QMM5 |
Mazda MES MN 117C (ATF-M V) |
Motorcraft Metal Surface Prep
ZC-31-A |
- |
Ultra Silicone Sealant
TA-29 |
- |
Courtesy of FORD MOTOR CO.

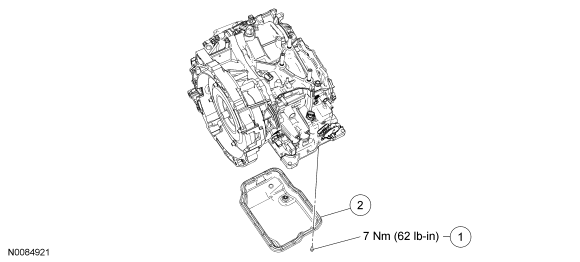

| Item |
Part Number |
Description |
| 1 |
- |
Transmission fluid pan bolt |
| 2 |
7A194 |
Transmission fluid pan |
