Transaxle Connector Layouts

WARNING: This page is about a different car, the 2009 Mercury Milan and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transaxle Solenoid Location
GF0029688Courtesy of FORD MOTOR CO.
Item Description
1 Shift Solenoid A (SEA)
2 Shift Solenoid B (SSB)
3 Shift Solenoid C (SSC)
4 Shift Solenoid D (SSD)
5 Shift Solenoid E (SSE)
6 Shift Solenoid F (SSF)
7 Pressure Control Solenoid A (PCA)
8 Pressure Control Solenoid B (PCB)

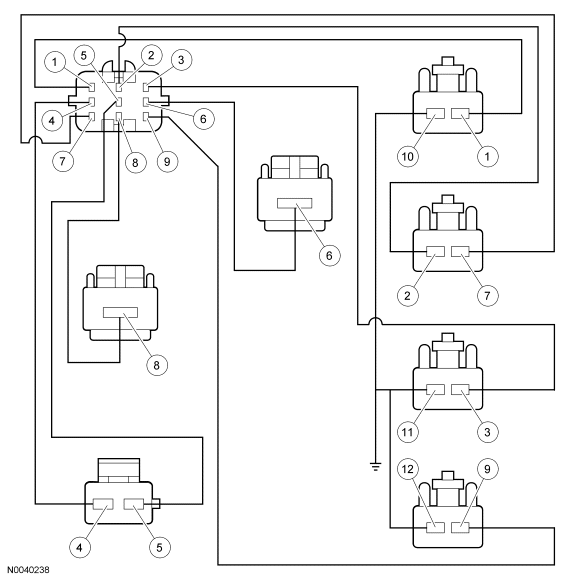

Fig 2: Transaxle Main Valve Body Internal Harness C1534
GF0029698Courtesy of FORD MOTOR CO.
Pin Circuit Function Connector Color
1 Shift Solenoid Pressure Control C (SSPCC) Green
2 Pressure Control Solenoid A (PCA) Black
3 Shift Solenoid Pressure Control A (SSPCA) White
4 Transmission Fluid Temperature (TFT) SIGRTN Black
5 TFT Black
6 Shift Solenoid D (SSD) White
7 PCA Black
8 Shift Solenoid E (SSE) Black
9 Shift Solenoid B (SSB) Blue
10 Shift Solenoid C (SSC) GROUND Green
11 Shift Solenoid A (SEA) GROUND White
12 Shift Solenoid B (SSB) GROUND Blue
Fig 3: Transaxle 5th Gear Valve Body Internal Harness Connectors
GF0029699Courtesy of FORD MOTOR CO.
Pin Circuit Function Connector Color
1 Shift Solenoid F (SSF) Black
2 Pressure Control Solenoid B (PCB) Black
3 PCB Ground Black
Fig 4: Transmission Control Module (TCM) C2352A
GF0029700Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Ground
2 VPWR
3 VPWR
4 -
5 Pressure Control Solenoid A (PCA)-
6 PCA+
7 Shift Solenoid Pressure Control C (SSPCC)
8 Shift Solenoid Pressure Control A (SSPCA)
9 Ground
10 VPWR
11 -
12 Shift Solenoid F (SSF)
13 Shift Solenoid E (SSE)
14 Shift Solenoid D (SSD)
15 Pressure Control Solenoid B (PCB)
16 Shift Solenoid Pressure Control B (SSPCB)

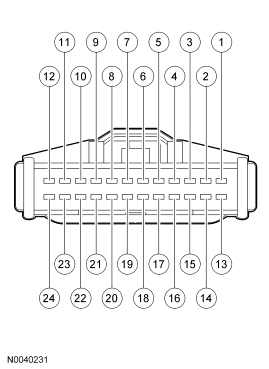

Fig 5: Transmission Control Module (TCM) C2352B
GF0029701Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Controller Area Network (CAN)+
2 -
3 -
4 -
5 Transmission Fluid Temperature (TFT)/ Transmission Range (TR) signal return
6 TFT
7 Turbine Shaft Speed (TSS) signal return
8 TSS signal
9 -
10 -
11 -
12 -
13 CAN-
14 -
15 -
16 Transmission Control Module (TCM) relay ground
17 Output Shaft Speed (OSS) signal
18 -
19 Intermediate shaft speed signal
20 Transmission fluid pressure signal
21 TR sensor
22 -
23 -
24 -
Fig 6: Transmission Control Module (TCM) Relay (Power Distribution Box (PDB) Side)
GF0029702Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Coil voltage
2 Ground
3 Voltage supplied at all times (overload protected)
4 Empty
5 Transmission Control Module (TCM) relay, output
Fig 7: Transaxle Main Valve Body Vehicle Harness C1534
GF0029703Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Shift Solenoid Pressure Control C (SSPCC)
2 Pressure Control Solenoid A (PCA)+
3 Shift Solenoid Pressure Control A (SSPCA)
4 Transmission Fluid Temperature (TFT) signal return
5 TFT
6 Shift Solenoid D (SSD)
7 PCA-
8 Shift Solenoid E (SSE)
9 Shift Solenoid Pressure Control B (SSPCB)
Fig 8: Transaxle 5th Gear Valve Body Vehicle Harness C1535
GF0029704Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Shift Solenoid F (SSF)
2 Pressure Control Solenoid B (PCB)
Fig 9: Transmission Range (TR) Sensor Vehicle Harness C1537
GF0029705Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Ground
2 Transmission Range (TR) sensor return
3 TR sensor
4 Empty
5 Empty
6 Park/Neutral signal
Fig 10: Output Shaft Speed (OSS) Sensor Vehicle Harness C193
GF0029706Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Ground
2 Output Shaft Speed (OSS) sensor signal
3 VPWR
Fig 11: Intermediate Shaft Speed Sensor Vehicle Harness C1088
GF0029706Courtesy of FORD MOTOR CO.
Pin Number Circuit Function
1 Ground
2 Intermediate shaft speed sensor signal return
3 VPWR
Fig 12: Turbine Shaft Speed (TSS) Sensor Vehicle Harness C143
GF0029707Courtesy of FORD MOTOR CO.
TRANSMISSION RANGE (TR) SENSOR DIAGNOSIS CHART

Selector Position TR Sensor Pins Component Side Expected Value
Park/Neutral 1 and 6 Less than 5 ohms
Park 2 and 3 3,370-5,230 ohms
Reverse 2 and 3 1,250-1,750 ohms
Neutral 2 and 3 630-870 ohms
Drive 2 and 3 330-450 ohms
Low 2 and 3 150-250 ohms
Pin Number Circuit Function
1 Turbine Shaft Speed (TSS)
2 Signal return
