Leakage Inspection: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

Illustration	Tool Name	Tool Number
Courtesy of FORD MOTOR CO.	100W/12 Volt DC UV Lamp	164-R0751 or equivalent

Material

Item	Specification
Dye-Lite® ATF/Power Steering Fluid Leak Detection Dye 164-R3701 (Rotunda)	-
FNR5 Automatic Transmission Fluid XT-9-QMM5	Mazda MES MN 117C (ATF-M V)

NOTE: Do not try to stop the transmission fluid leak by increasing the torque beyond specifications. This may cause damage to the case threads.

Check the transmission fluid filler tube at the transaxle case. If leakage is found here, install a new plug.

Check transmission fluid cooler tubes and fittings between the transaxle and the transmission fluid cooler for looseness, wear or damage. If leakage cannot be stopped by tightening a transmission fluid tube nut, install new parts.

If the leak continues, install a new transmission fluid cooler tube fitting and tighten to specification. The same procedure should be followed for transmission fluid leaks between the transmission fluid cooler and the transmission fluid cooler tube fittings. Refer to TRANSAXLE/TRANSMISSION COOLING article.

The transmission fluid cooler can be further checked for leaks. Refer to TRANSAXLE/TRANSMISSION COOLING article.

If leakage is found at the Transmission Range (TR) manual control lever, install a new seal.

If leakage is found at the transaxle harness connector, install a new O-ring.

The transaxle has the following parts to prevent external fluid leakage:

Sealer
Lip-type seals
O-ring seals
Seal rings
Seal grommets
Thread sealant
Transmission fluid pan

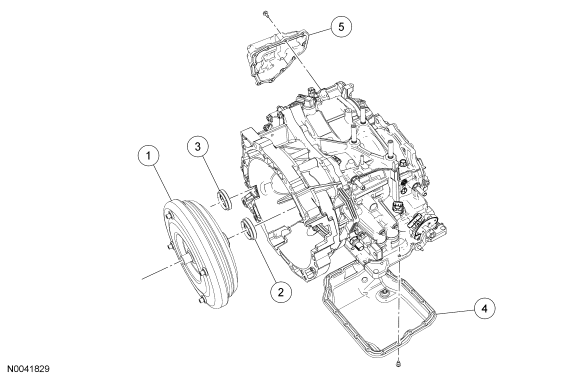

Fig 1: External Sealing

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Torque converter
2	7A248	Seal - pump fluid
3	1177	Seal assembly - differential (2 required)
4	7A194	Pan - transmission fluid (sealant-to-case)
5	7G004	Cover - 5th gear valve body
