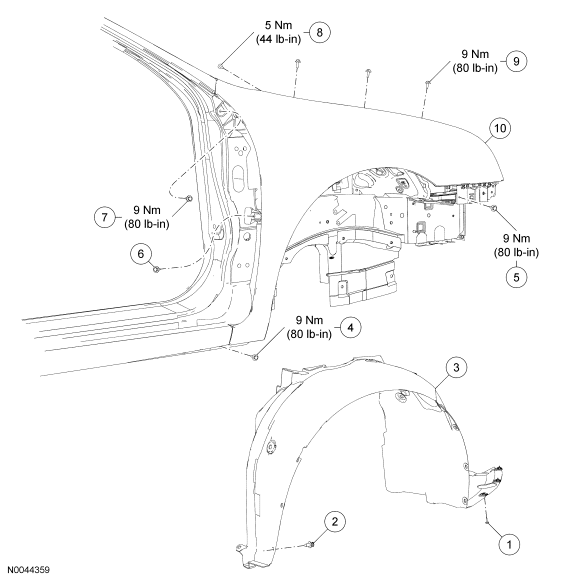

Front End Body Panels - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W706805 | Splash shield screw (3 required) |
| 2 | N807389 | Splash shield pin-type retainer (11 required) |
| 3 | 5416034 RH/ 5416035 LH | Splash shield |
| 4 | W505421 | Fender lower bolt (2 required) |
| 5 | W505421 | Fender radiator support brace bolt |
| 6 | W505421 | Fender rear lower bolt |
| 7 | W505421 | Fender rear upper bolt |
| 8 | W505421 | Fender rear inner bolt |
| 9 | W505421 | Fender upper bolt (3 required) |
| 10 | 16005 RH/ 16006 LH | Fender |
- For additional information, refer to the procedures.
