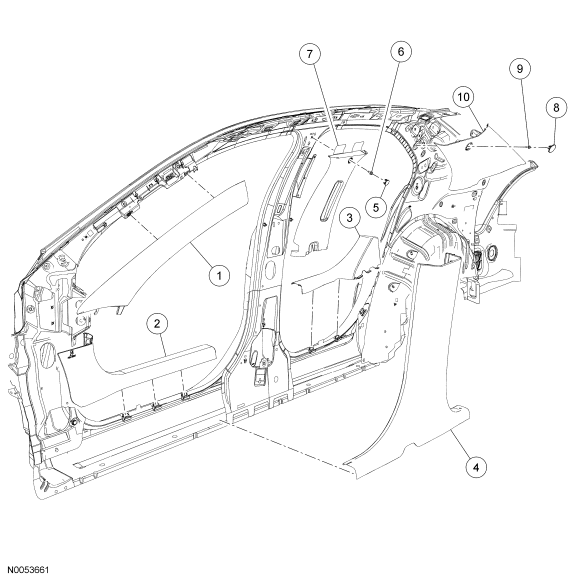

Interior Trim - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fusion shown, Milan and MKZ similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 03598 RH/ 03599 LH | A-pillar trim panel |
| 2 | 13208 RH/ 13209 LH | Front door scuff plate |
| 3 | 13228 RH/ 13229 LH | Rear door scuff plate |
| 4 | 24346 RH/ 24347 LH | B-pillar lower trim panel |
| 5 | 672A40A | B-pillar trim panel screw cover |
| 6 | W705604 | B-pillar trim panel screw |
| 7 | 24356 RH/ 24357 LH | B-pillar upper trim panel |
| 8 | 672A40B | C-pillar trim panel screw cover |
| 9 | W705604 | C-pillar trim panel screw |
| 10 | 52018 RH/ 52019 LH | C-pillar trim panel |
- For additional information, refer to the procedures.
