Removal And Installation: Headliner: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

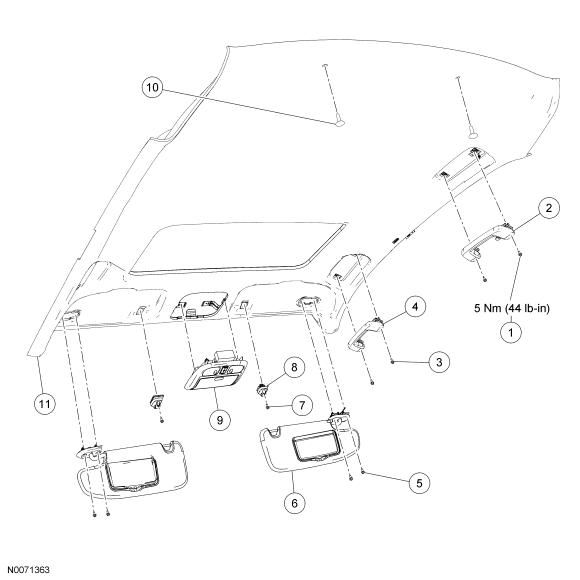

Headliner with moon roof shown, headliner without moon roof similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W504265 | Assist handle bolt (2 required) |
| 2 | 31406B RH/ 31407B LH | Rear assist handle |
| 3 | W504265 | Assist handle bolt (2 required) |
| 4 | 31406A RH/ 31407A LH | Front assist handle |
| 5 | W505003 | Sun visor screw (2 required) |
| 6 | 04104 RH/ 04105 LH | Sun visor |
| 7 | W505003 | Sun visor arm clip screw |
| 8 | 04132 | Sun visor arm clip |
| 9 | 519A70 | Overhead console |
| 10 | W709571 | Push pin retainer (2 required) |
| 11 | 51916 | Headliner |
