Door Trim Panel - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

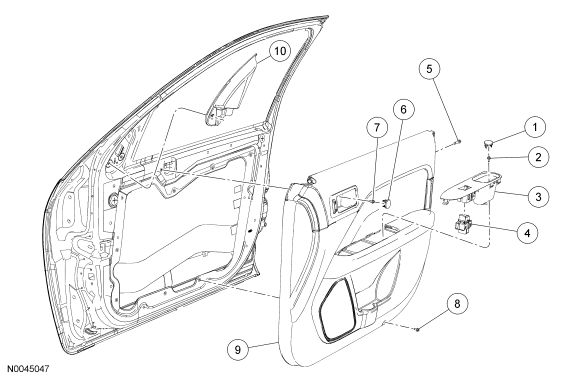

Fusion shown, Milan and MKZ similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front door inside handle bezel screw cover |
| 2 | W703268 | Front door inside handle bezel screw |
| 3 | 54266B | Front door inside handle bezel |
| 4 | 14529B | Front door window switch |
| 5 | W706476 | Front door trim panel upper screw |
| 6 | - | Front door handle screw cover |
| 7 | W505942 | Front door handle screw |
| 8 | W706476 | Front door trim panel lower screw |
| 9 | 5423942 | Front door trim panel |
| 10 | 17K709 | Front door trim sail panel |
