Bumper - Rear: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

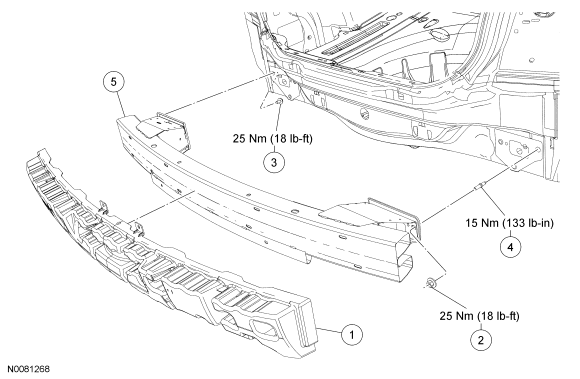

| Item |
Part Number |
Description |
| 1 |
17E899 |
Isolator rear bumper |
| 2 |
N621940-S |
Rear bumper stud nut (4 required) |
| 3 |
N811479-S |
Rear bumper bolt (2 required) |
| 4 |
N808889-S |
Rear bumper stud (4 required) |
| 5 |
17775 |
Rear bumper |
