Bumper - Front: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

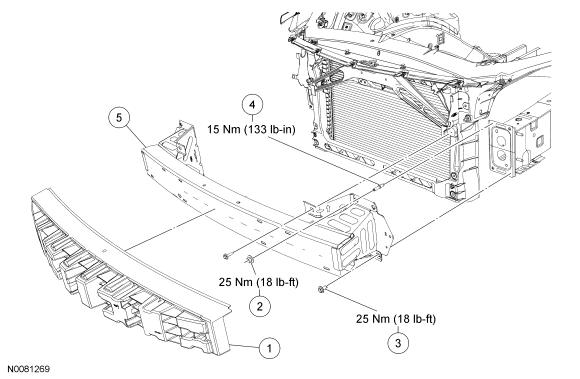

| Item |
Part Number |
Description |
| 1 |
17E898 |
Front bumper isolator |
| 2 |
N621940-S |
Front bumper stud nut (2 required |
| 3 |
N811479-S |
Front bumper mounting bolt (6 required) |
| 4 |
N808889-S |
Front bumper stud (2 required) |
| 5 |
17757 |
Front bumper |
