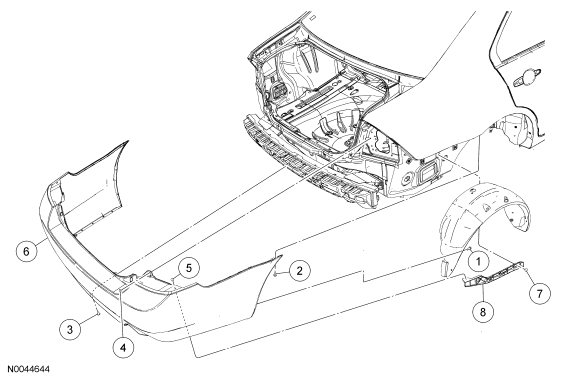

Bumper - Exploded View, Rear
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fusion shown, Milan and MKZ similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Splash shield pin-type retainer (6 required) |
| 2 | W706805-S | Upper bumper cover screw (2 required) |
| 3 | N807389-S | Lower rear bumper cover pin-type retainer (2 required) |
| 4 | W505165-S | Bumper cover bolt (2 required) |
| 5 | N807389-S | Bumper cover pin-type retainer (2 required) |
| 6 | - | Rear bumper cover |
| 7 | W505154-S | Rear bumper cover mounting bracket bolt (2 required) |
| 8 | - | Rear bumper cover mounting bracket |
- For additional information, refer to the procedures.
