Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

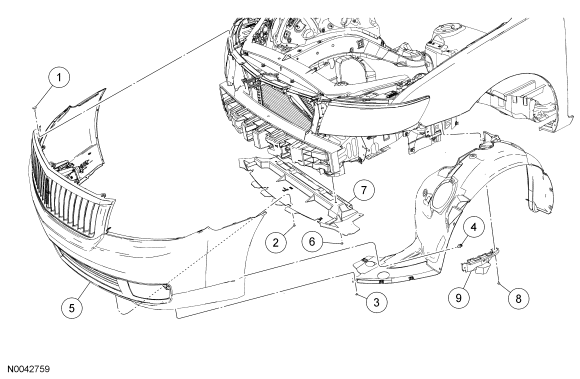

| Item | Part Number | Description |
|---|---|---|
| 1 | W711685-S | Upper radiator grille bolt (2 required) |
| 2 | N807389-S | Upper radiator grille pin-type retainer (2 required) |
| 3 | W706805 | Bumper cover air deflector bolt (4 required) |
| 4 | - | Splash shield pin-type retainer (6 required) |
| 5 | 17D957 | Front bumper cover |
| 6 | - | Air deflector screw (4 required) |
| 7 | 8327 | Lower air deflector |
| 8 | W706805 | Bumper cover mounting bracket bolt |
| 9 | 17C947 | Bumper cover mounting bracket |
| 10 | - | Fender splash shield screw (8 required) |

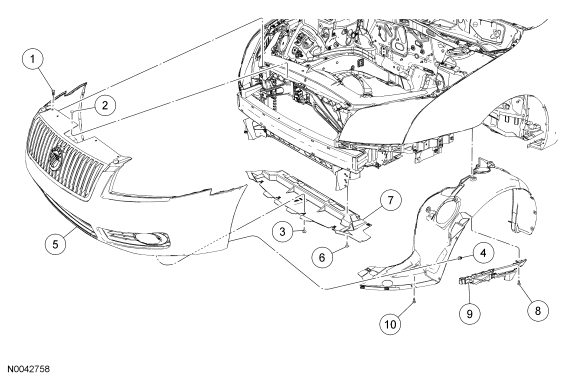

| Item | Part Number | Description |
|---|---|---|
| 1 | W711685-S | Upper radiator grille bolt (2 required) |
| 2 | N807389-S | Upper radiator grille pin-type retainer (2 required) |
| 3 | W706805 | Bumper cover air deflector bolt (4 required) |
| 4 | - | Splash shield pin-type retainer (6 required) |
| 5 | 17D957 | Front bumper cover |
| 6 | - | Air deflector screw (4 required) |
| 7 | 8327 | Lower air deflector |
| 8 | W706805 | Bumper cover mounting bracket bolt |
| 9 | 17C947 | Bumper cover mounting bracket |
| 10 | - | Fender splash shield screw (8 required) |

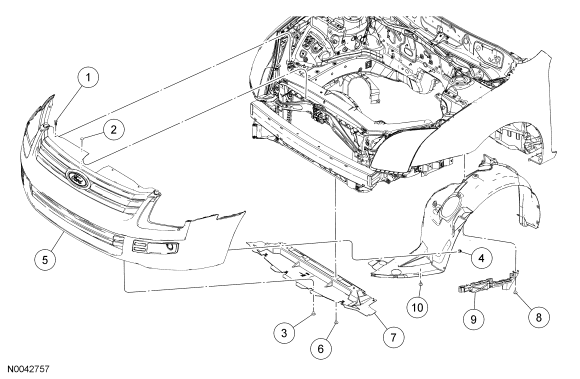

| Item | Part Number | Description |
|---|---|---|
| 1 | W711685-S | Upper radiator grille bolt (5 required) |
| 2 | W706805 | Bumper cover air deflector bolt (4 required) |
| 3 | - | Fender splash shield screw (8 required) |
| 4 | - | Splash shield pin-type retainer (6 required) |
| 5 | 17D957 | Front bumper cover |
| 6 | - | Air deflector screw (4 required) |
| 7 | 8327 | Lower air deflector |
| 8 | - | Bumper cover mounting bracket bolt |
| 9 | 17C947 | Bumper cover mounting bracket |
- For additional information, refer to the procedures.
