Safety Belt Shoulder Height Adjuster: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

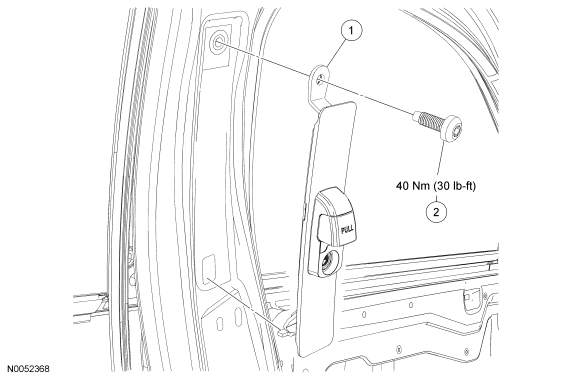

Fig 1: Exploded View Of Safety Belt Shoulder Height Adjuster With Torque Specification
GF0028559Courtesy of FORD MOTOR CO.
Item Part Number Description
1 602B82 Safety belt shoulder height adjuster
2 - Bolt (part of 602B82)
