Safety Belt Retractor and Pretensioner: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

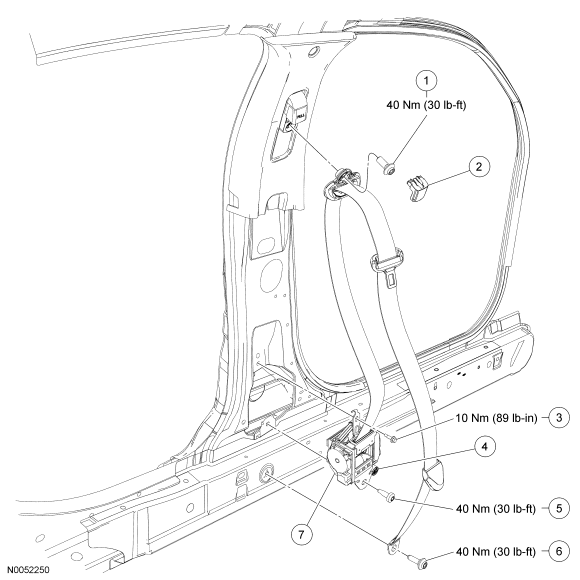

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bolt, D-ring (part of 611B09 LH/ 611B08 RH) |
| 2 | 60262 | Cover, D-ring |
| 3 | W505253 | Bolt, safety belt retractor (upper) |
| 4 | - | Electrical connector |
| 5 | W700883 | Bolt, safety belt retractor and pretensioner (lower) |
| 6 | - | Bolt, safety belt retractor anchor (part of 611B08 RH/ 611B09 LH) |
| 7 | 611B08 RH/ 611B09 LH | Safety belt retractor and pretensioner |
