Child Safety Seat Tether Anchor: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

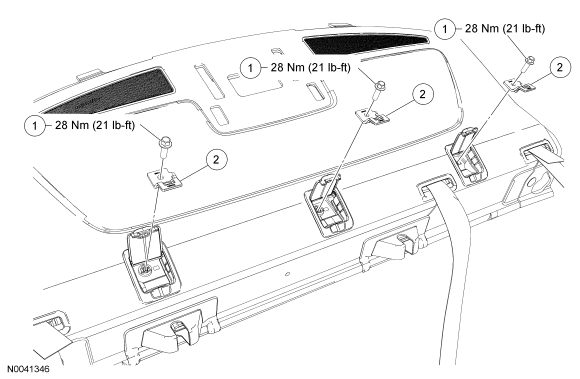

Fig 1: Exploded View Of Child Safety Seat Tether Anchor With Torque Specifications
GF0028562Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolts (part of 613D26)
2 613D26 Safety seat tether anchors
