Side Impact Sensor - C-Pillar
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

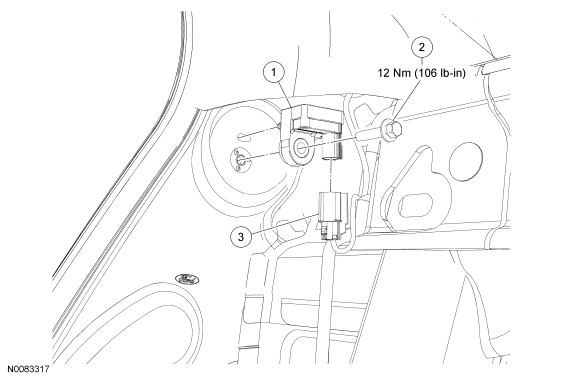

RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 14B345 | Side impact sensor |
| 2 | W505256 | Side impact sensor bolt |
| 3 | - | Side impact sensor electrical connector (part of 14A005) |
NOTE:
The air bag warning indicator illuminates when the Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
- Remove the rear seat bolster. For additional information, refer to SEATING .
- Disconnect the side impact sensor electrical connector.
- Remove the bolt and side impact sensor.
- To install, tighten to 12 Nm (106 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
WARNING:
Always tighten the fasteners of the restraints control module (RCM) and impact sensor (if equipped) to the specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
NOTE:
Make sure the C-pillar and side impact sensor mating surfaces are clean.
