Seat Position Sensor
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

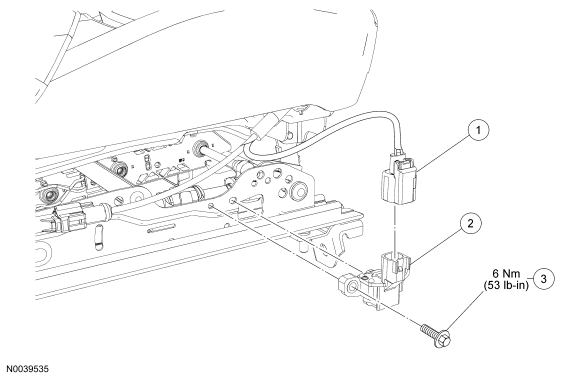

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat position sensor electrical connector (part of 14A699) |
| 2 | 14B416 | Seat position sensor |
| 3 | W505256 | Seat position sensor bolt |
NOTE:
The air bag warning indicator illuminates when the Restraints Control Module (RCM) fuse is removed and the ignition switch is ON.
NOTE:
The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
- Position the front seat to the rearmost and upward position.
- Depower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
- Disconnect the seat position sensor electrical connector.
- Remove the bolt and seat position sensor.
- To install, tighten to 6 Nm (53 lb-in).
- To install, reverse the removal procedure.
- Repower the SRS. For additional information, refer to Supplemental Restraint System (SRS) Depowering and Repowering .
WARNING:
Always tighten the seat position sensor retaining bolt to specified torque. Failure to do so may result in incorrect restraint system operation, which increases the risk of personal injury or death in a crash.
