Front Impact Severity Sensor: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

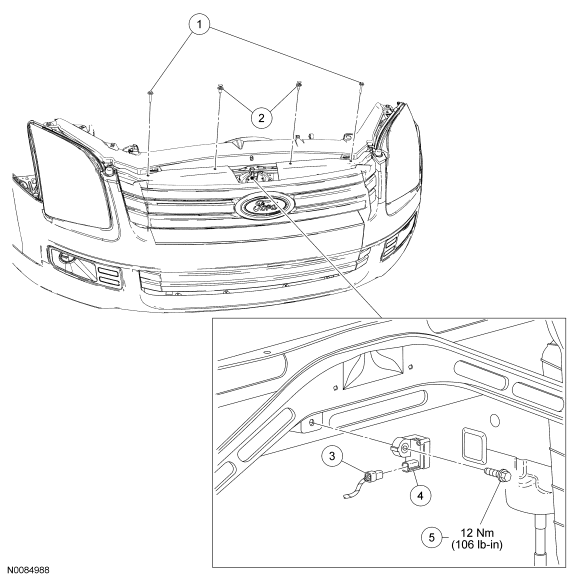

| Item | Part Number | Description |
|---|---|---|
| 1 | W505426 | Upper grille bolts (2 required) |
| 2 | N807389 | Upper grille pin-type retainers (2 required) |
| 3 | - | Front impact severity sensor electrical connector (part of 14290) |
| 4 | 14B006 | Front impact severity sensor assembly |
| 5 | W505256 | Front impact severity sensor assembly bolt |
