Air Bag Trim Cover - Passenger: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

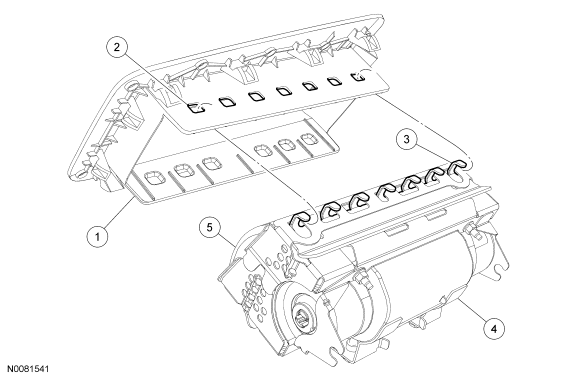

| Item |
Part Number |
Description |
| 1 |
04338 |
Passenger air bag cover |
| 2 |
- |
Passenger air bag cover window (part of passenger air bag cover) |
| 3 |
- |
Passenger air bag canister hook (part of canister) |
| 4 |
- |
Passenger air bag canister (part of 044A74) |
| 5 |
- |
Passenger air bag soft pack (part of 044A74) |
Courtesy of FORD MOTOR CO.

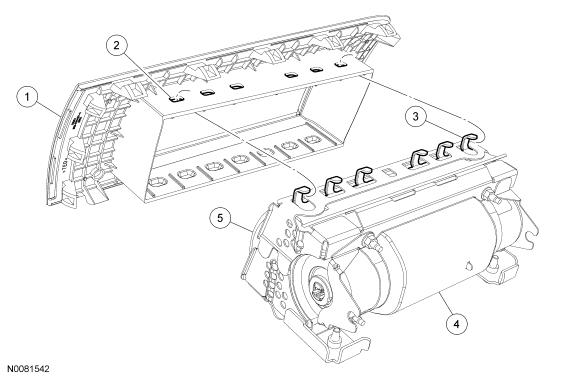

| Item |
Part Number |
Description |
| 1 |
04338 |
Passenger air bag cover |
| 2 |
- |
Passenger air bag cover windows (part of passenger air bag cover) |
| 3 |
- |
Passenger air bag canister hooks (part of canister) |
| 4 |
- |
Passenger air bag canister (part of 044A74) |
| 5 |
- |
Passenger air bag soft pack (part of 044A74) |
