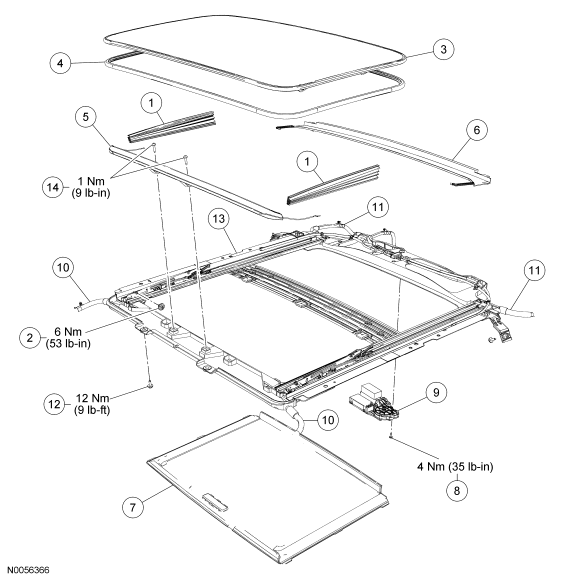

Roof Opening Panel - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 500A66 | Concertina blinds (2 required) |
| 2 | - | Roof opening panel glass screw (4 required) |
| 3 | 54500A18 | Roof opening panel glass |
| 4 | 5451884 | Roof opening panel glass seal |
| 5 | 54500A26 | Roof opening panel air deflector |
| 6 | 7854022 | Roof opening panel trough |
| 7 | 54519A02 | Roof opening panel shield |
| 8 | - | Roof opening panel motor screw (3 required) |
| 9 | 15B689 | Roof opening panel motor |
| 10 | 502C52A | Front drain hoses |
| 11 | 502C52B | Rear drain hoses |
| 12 | - | Roof opening panel frame bolt (8 required) |
| 13 | 54502C22 | Roof opening panel frame |
| 14 | - | Air deflector screws |
- For additional information, refer to the individual procedures.
