Roof Opening Panel Alignment
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
- Open the roof opening panel to the VENT position.
- Loosen the 4 roof opening panel glass screws.
- To access the glass screws, unclip the top portion of the concertina blind and position aside as shown.
- Close the roof opening panel glass.
- Adjust the roof opening panel glass.
- Tighten the 4 roof opening panel glass screws to 6 N.m (53 lb-in).
- Open the roof opening panel to the VENT position.
- Reattach the concertina blind making sure that it is fully seated on the 3 clips in roof panel glass.
NOTE:

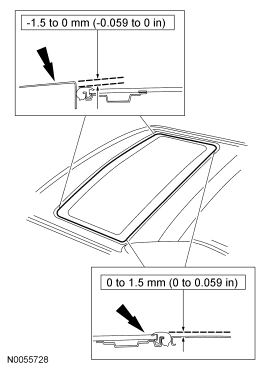

The correct position of the roof opening panel glass to the roof panel should be -1.50 mm to 0 mm (-0.059 to 0 in) at the front edge and 0 mm to 1.5 mm (0 to 0.059 in) at the rear edge of the roof panel.
Make sure the roof opening panel is centered in the roof opening.
