Global Open - MKZ Only
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The global open feature may be enabled/disabled via scan tool or in some cases modified by the customer following a procedure listed in the vehicle Owner's Literature. For a complete list of available programmable parameters, refer to MODULE CONFIGURATION
NOTE:
The smart junction box (SJB) may also be identified as the generic electronic module (GEM).
When the unlock button of the Remote Keyless Entry (RKE) is held for 2 seconds, the SJB sends a signal on the global open circuit, to both front door window motors and the roof opening panel motor, to open the windows. If the accessory delay relay is active, the global open feature will not operate.

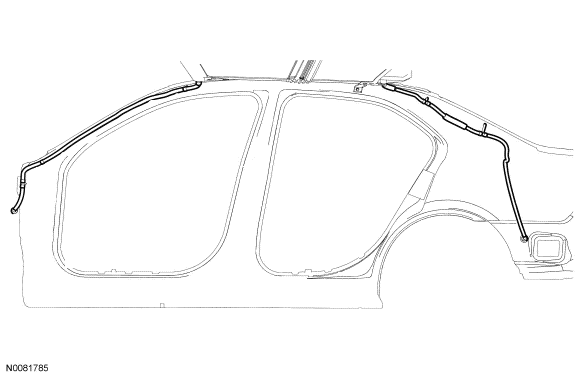

Roof Opening Panel Drain Hose Routing
