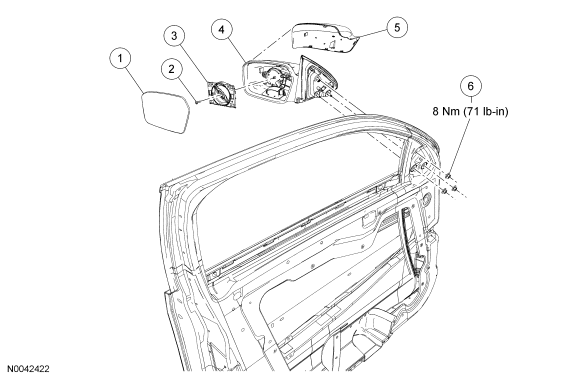

Exterior Mirrors - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
17K707 |
Exterior mirror glass |
| 2 |
- |
Exterior mirror motor screw |
| 3 |
17D696 |
Exterior mirror motor |
| 4 |
17682 |
Exterior mirror |
| 5 |
17D742 |
Exterior mirror cover |
| 6 |
N621906 |
Exterior mirror nut (3 required) |
- For additional information, refer to the procedures.
