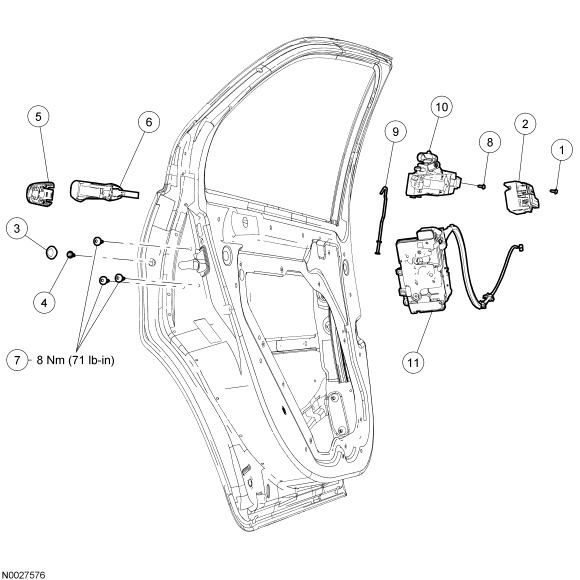

Rear Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Interior rear door handle screw |
| 2 | 5422600/ 5422601 | Interior rear door handle (RH/LH) |
| 3 | - | Grommet |
| 4 | - | Exterior rear door handle cover screw |
| 5 | 5422088 | Exterior rear door handle cover |
| 6 | 5422404 | Exterior rear door handle |
| 7 | W705830-S900 | Rear door latch bolts (3 required) |
| 8 | - | Rear door latch bracket screws (3 required) (part of 5426412/ 5426413) |
| 9 | 5426596/ 5426597 | Exterior door handle actuating rod (RH/LH) |
| 10 | 5426684/ 5426685 | Exterior rear door handle reinforcement (RH/LH |
| 11 | 5426412/ 5426413 | Rear door latch (RH/LH) |
- For additional information, refer to the procedures.
