Luggage Compartment Lid Latch: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

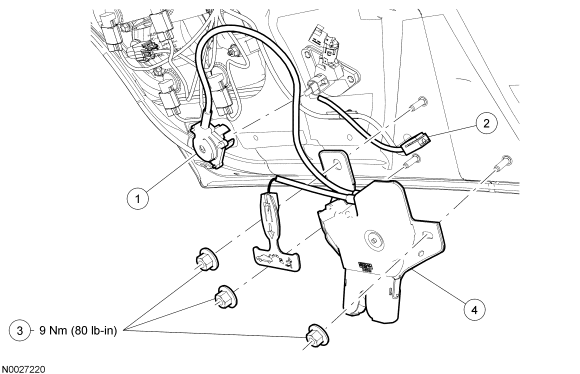

Fig 1: Exploded View Of Luggage Compartment Lid Latch With Torque Specification
GF0028473Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Luggage compartment lid lock cylinder actuating cable (part of 5443200)
2 - Luggage compartment lid latch electrical connector (part of 14A005)
3 W705760 Luggage compartment lid latch nuts (3 required)
4 5443200 Luggage compartment lid latch
