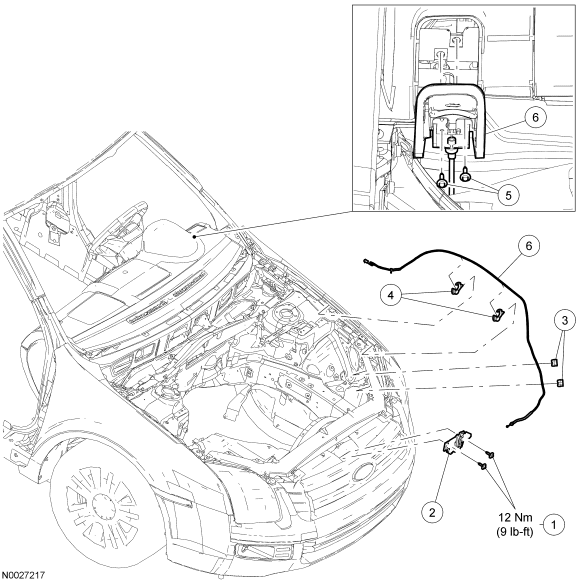

Hood Latch and Components - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | N808727 | Hood latch bolts (2 required) |
| 2 | 16700 | Hood latch |
| 3 | W70678 | Hood latch release cable locators (2 required) |
| 4 | 14A163 | Hood latch release cable locators (2 required) |
| 5 | N807122 | Hood latch release handle screws (2 required) |
| 6 | 16916 | Hood latch release handle and cable |
- For additional information, refer to the procedures.
