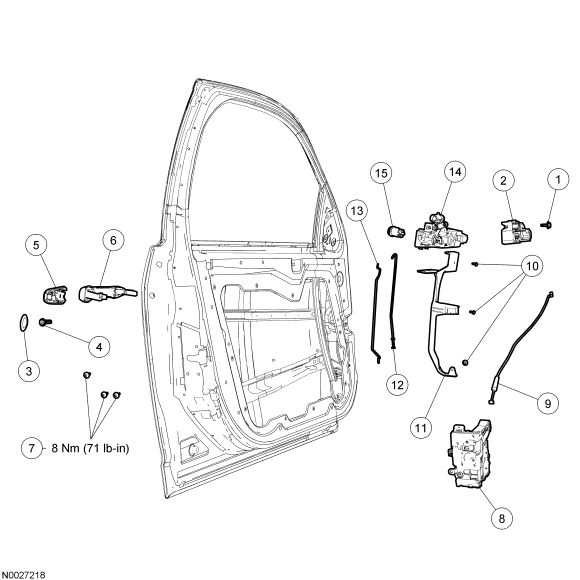

Front Door Handles, Locks and Latches - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Interior door handle screw |
| 2 | 5422600/ 5422601 | Interior door handle (RH/LH) |
| 3 | - | Grommet |
| 4 | - | Exterior front door handle cover screw |
| 5 | 5422088/ 54218A14 | Exterior front door handle cover (RH/LH) |
| 6 | 5422404 | Exterior front door handle |
| 7 | W705830-S900 | Front door latch bolts (3 required) |
| 8 | 5421812/ 5421813 | Front door latch RH/LH) |
| 9 | - | Interior door handle actuating cable |
| 10 | - | Anti-theft guard screw (3 required) (part of 5421812/5421813) |
| 11 | - | Anti-theft guard (part of 542181254/21813) |
| 12 | 5422152/ 5422153 | Exterior door handle actuating rod (RH/LH) |
| 13 | 5422135 | Front door lock cylinder actuating rod (if equipped) |
| 14 | 5426684/ 5426685 | Exterior front door handle reinforcement (RH/LH) |
| 15 | - | Front door lock cylinder |
- For additional information, refer to the procedures.
