Door Lock Control Switch: Notes

WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

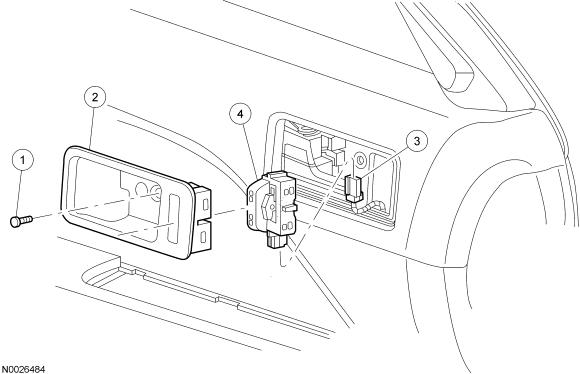

Fig 1: Exploded View Of Door Lock Control Switch
GF0028476Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Interior front door handle finish panel screw
2 5422620/ 5422621 Interior front door handle finish panel (RH/LH)
3 - Door lock control switch electrical connector (part of 14630/14631)
4 14028 Door lock control switch
