Thermostatic Expansion Valve Manifold and Tube Assembly: Notes
WARNING: This page is about a different car, the 2009 Mercury Milan, 2009 Lincoln MKZ, and 2009 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D |
WSH-M1C231-B |

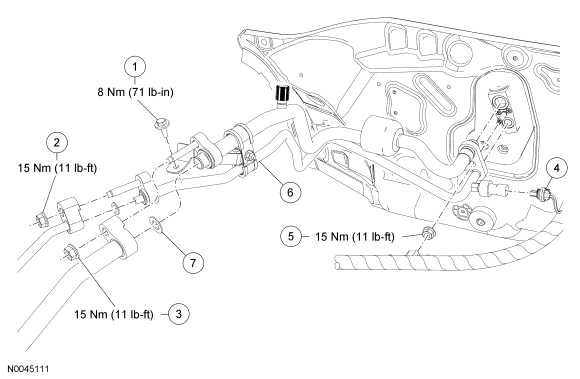

Fig 1: Exploded View Of Thermostatic Expansion Valve Manifold & Tube Assembly With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | W707399 | Thermostatic expansion valve (TXV) manifold and tube bracket bolt |
| 2 | W520413 | Condenser-to-evaporator line fitting nut |
| 3 | W520413 | Compressor manifold and tube suction fitting nut |
| 4 | 14290 | A/C pressure transducer electrical connector |
| 5 | W520413 | TXV fitting nut |
| 6 | 19835 | TXV manifold and tube |
| 7 | 19B596 | Gasket seal (4 required) |
